Color
Specification & Features

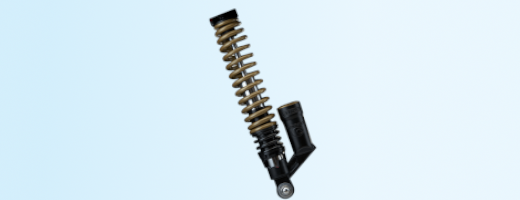

Nitrox Suspension
For superior shock absorption to reduce the impact of bad roads.
Extra Torque
To power through inclines and uphill roads.

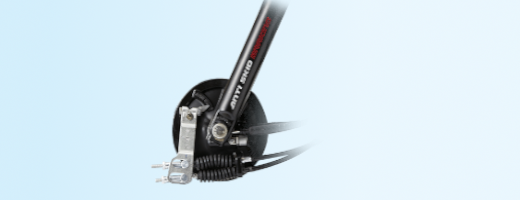

Anti Skid Braking
To ensure safety by distributing brake force to both tyres.

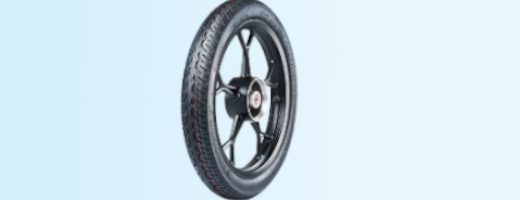

Tubeless Tyres
To power through inclines and uphill roads.

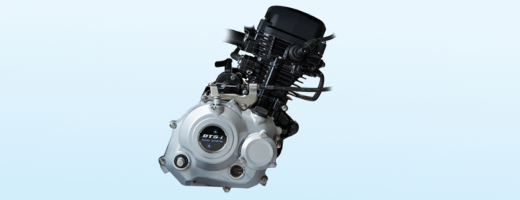

ENGINE
 | |
| Type | Single cyl, 2-valve, DTS-I with ExhausTEC |
| Capacity | 115 |
| Bore x Stroke (mm) | 50 x 58.8 |
| Power | 6.3 kW (8.6 PS) @ 7000 rpm |
| Torque (Nm @ RPM) | 9.81 @ 5000 |
| Starting | Kick + Electric Starter |
| Top Speed | 90 km/h (internally tested) |
| ARAI FE (kmpl) | 80.0 |
| Carburetor | PTE 16 Manual choke |
| Transmission | 4-speed |
| Frame | Tubular, Semi double cradle |
SUSPENSION
 | |
| Front | Telescopic, 135 mm |
| Rear | SOS, 110 mm with Nitrox gas canister |
TYRE
 | |
| Front | 80/100-17 Tubeless |
| Rear | 80/100-17 Tubeless |
BRAKES
 | |
| Front (mm) | 130 Drum |
| Rear (mm) | 110 Drum With CBS |
FUEL TANK
 | |
| Fuel tank Capacity | 11.5 L |
ELECTRICALS
 | |
| System | DC system |
| Headlamp | 12V 35/35W , HS 1 Blue Tinge bulb |
| DRL | LED |
DIMENSIONS
 | |
| Length | 2006 mm |
| Width | 704 mm |
| Height | 1069 mm |
| Wheel base | 1255 mm |
| Saddle height | 804 mm |
| Ground Clearance | 200 mm |
| Kerb weight (drum / disc) kg | 117 kg |
| Power to Weight | 54.05 kW/Ton (73.5 PS/Ton) |

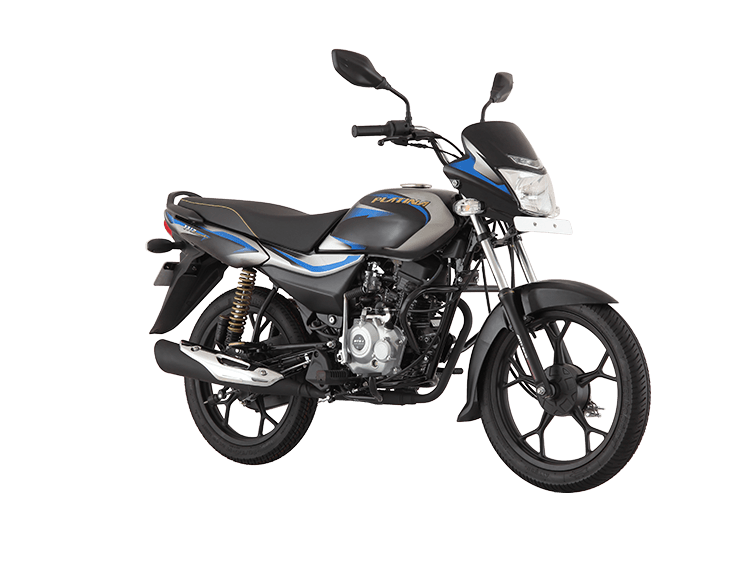

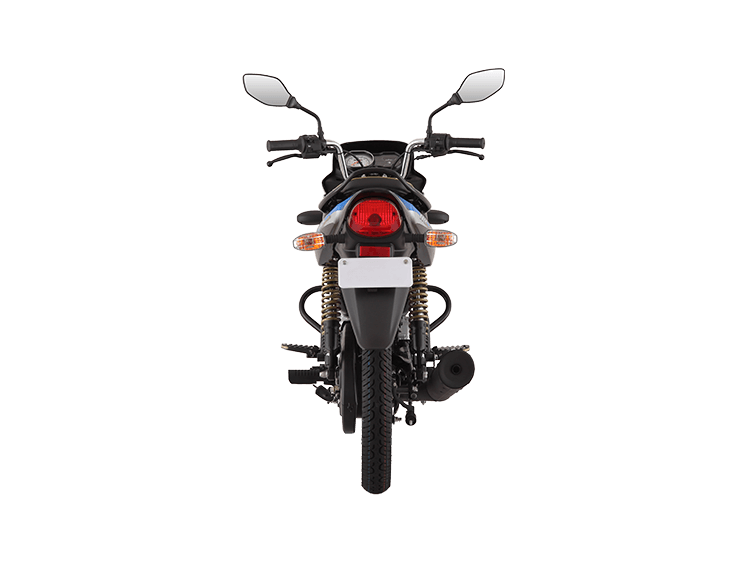

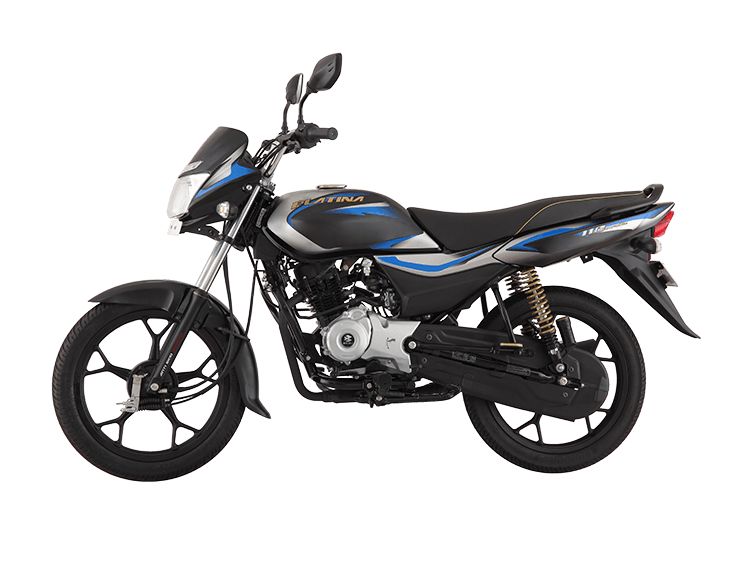

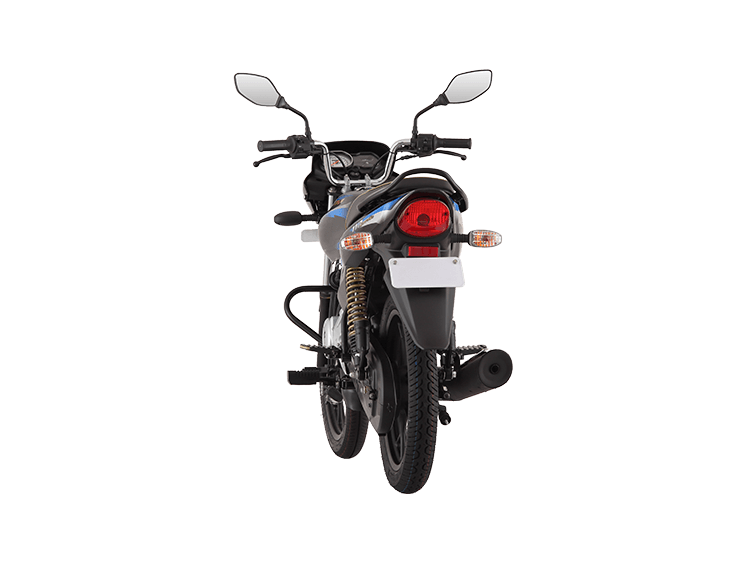

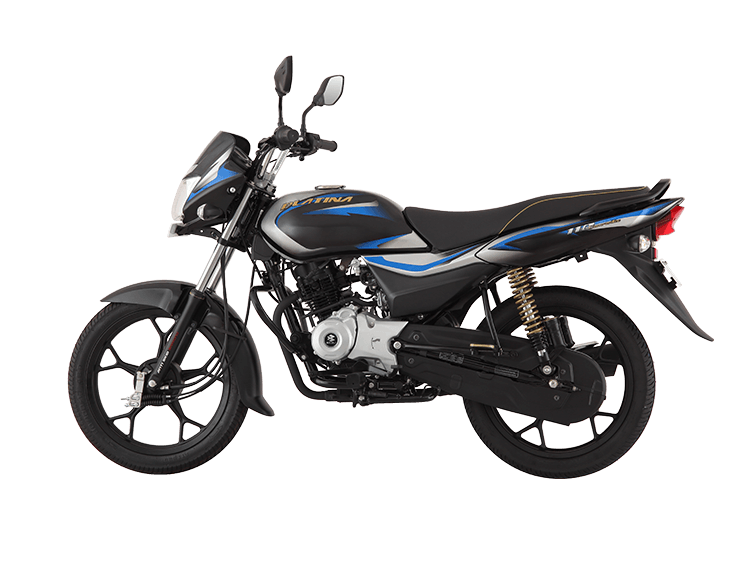

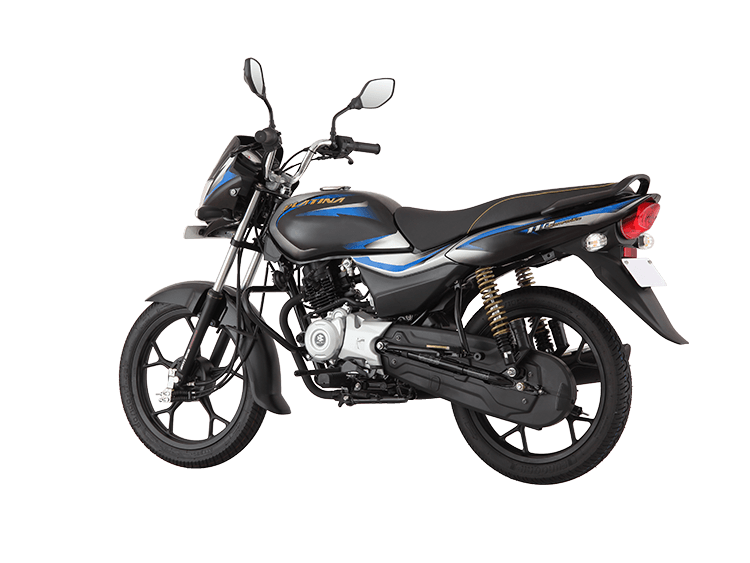

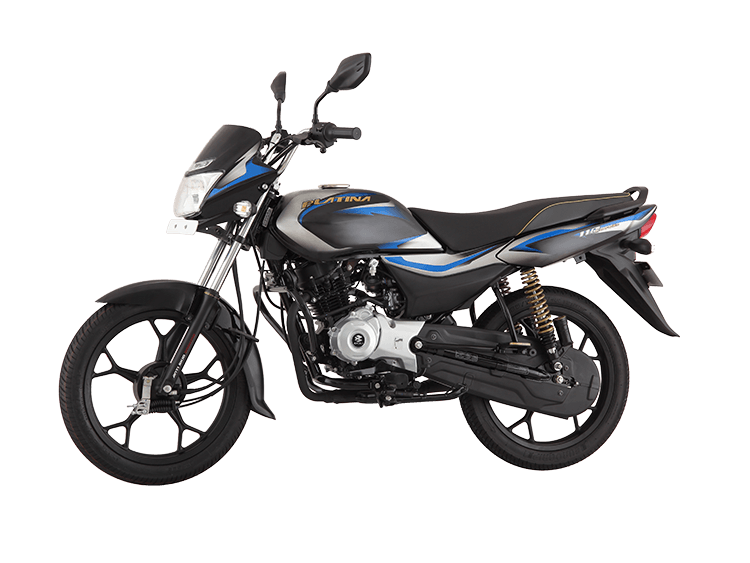

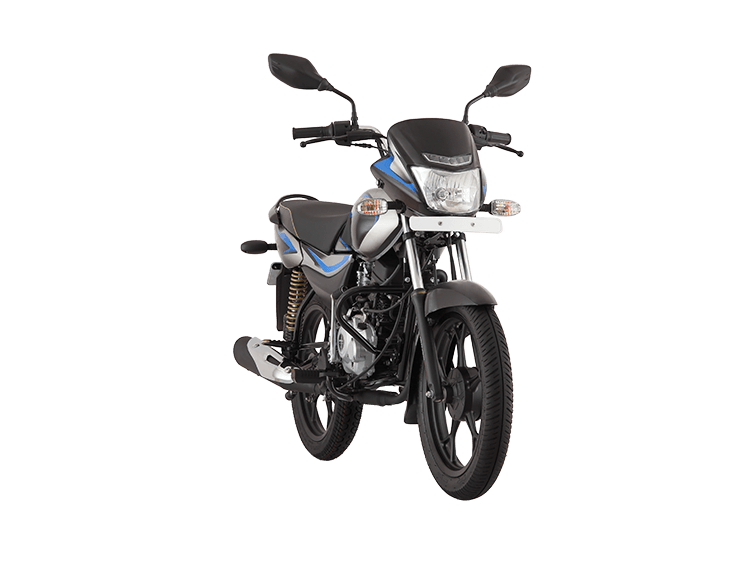

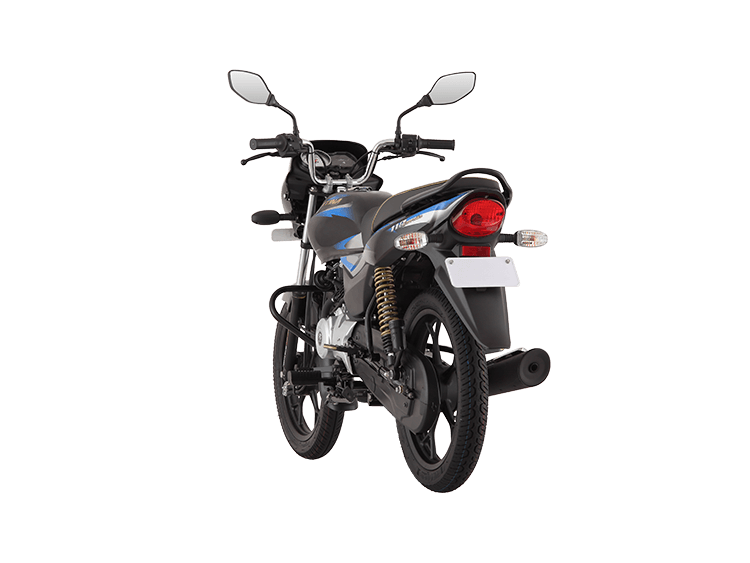

Gallery
